Everyone needs an Angel...
- 870 grams (size 85)
- Designed to maximise weight volume savings
- Increased stability
- Improved sink rate
- Rapid inflation
Gleitschirme
Angel SQ Pro
- Product Info
- Specification
- Photos
- Downloads
Intro
Everyone needs an Angel... The Angel SQ Pro is a top-of-the-line option for pilots who want to carry a fast-opening, stable, and safe reserve parachute that packs in a low volume, and is ultra-lightweight. Designed and developed by the OZONE R&D Team, the Angel SQ includes all of their knowledge and experience to create the latest, most up to date development of the concept.
Supplied with a short bridle designed for harnesses with an integrated reserve bridle or to be used with additional risers, it pairs well with the Ozium, BV and F*Race series but may also be used with any other type of harness, or compact front containers. A long Y bridle is also available.

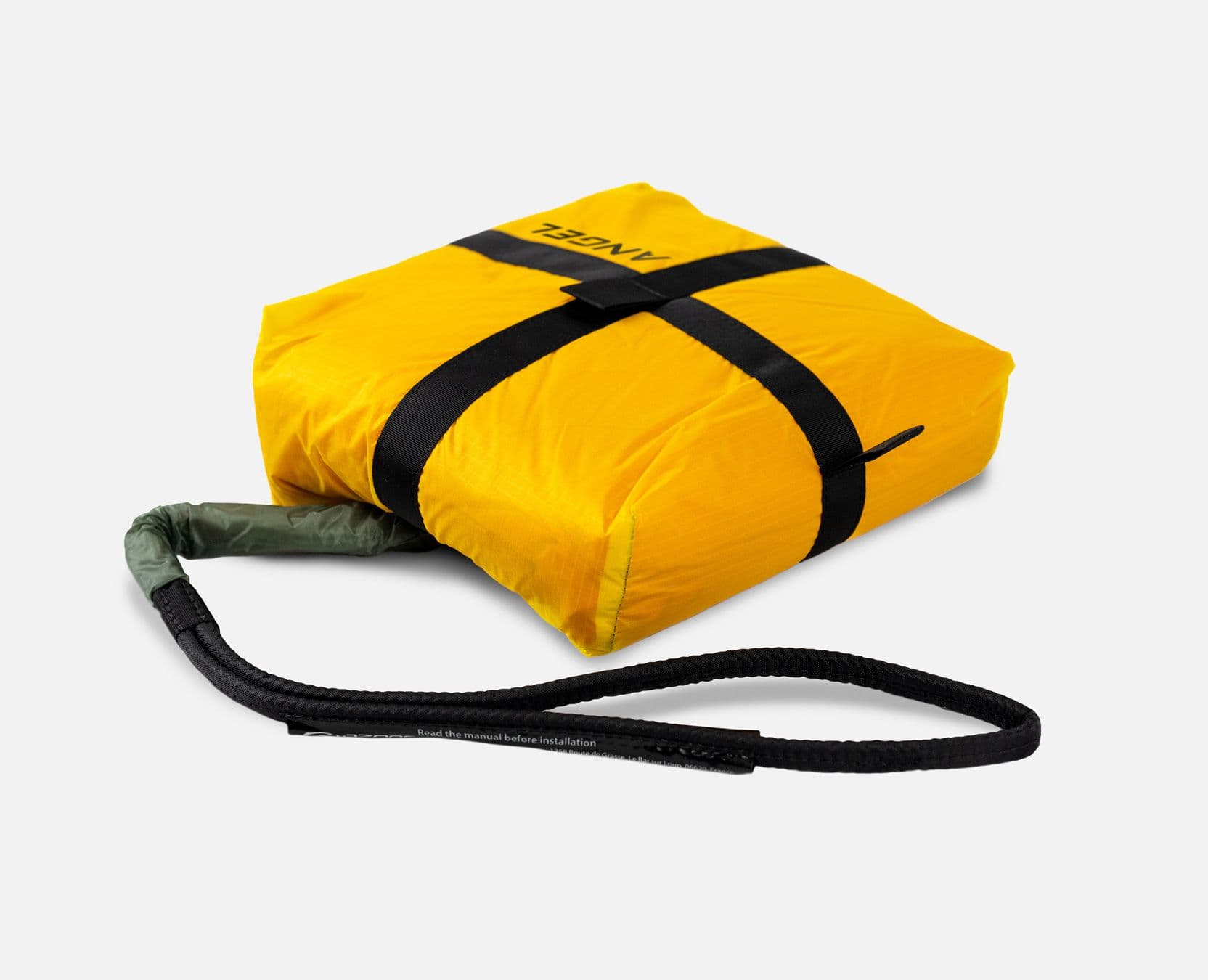

The Tech
The Angel SQ PRO has a relatively large surface area, yet is ultralight, giving exceptional sink rate and stability performance with fast opening times. The large surface area is the principal ingredient in its excellent sink rate — all sizes of the Angel SQ PRO provide plenty of margin within the weight ranges they are certified to carry. Where the Angel SQ PRO really shines is in its high pendulum stability, which can be even more important than sink rate performance.
Materials and Certification

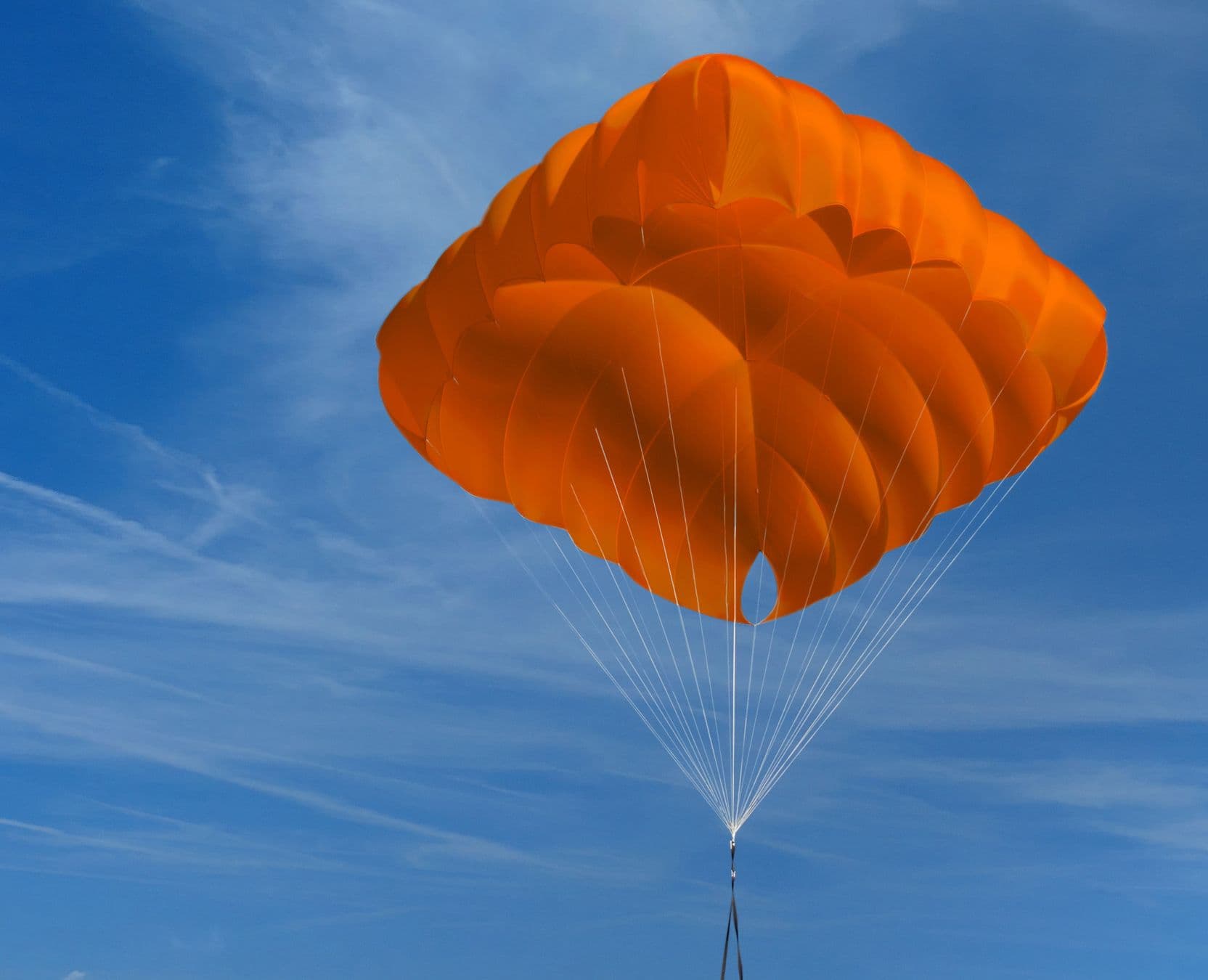

The Angel SQ PRO uses the highest quality parachute materials: Dominico 10D, and Cousin Dyneema lines. The Angel SQ PRO is certified in sizes 85, 100 and 120. These materials have been chosen for their optimum balance of durability, with smallest packing volumes and low weight.
The Angel SQ PRO is certified EN and LTF to the EN 12491 and LTF 91/09 standards.

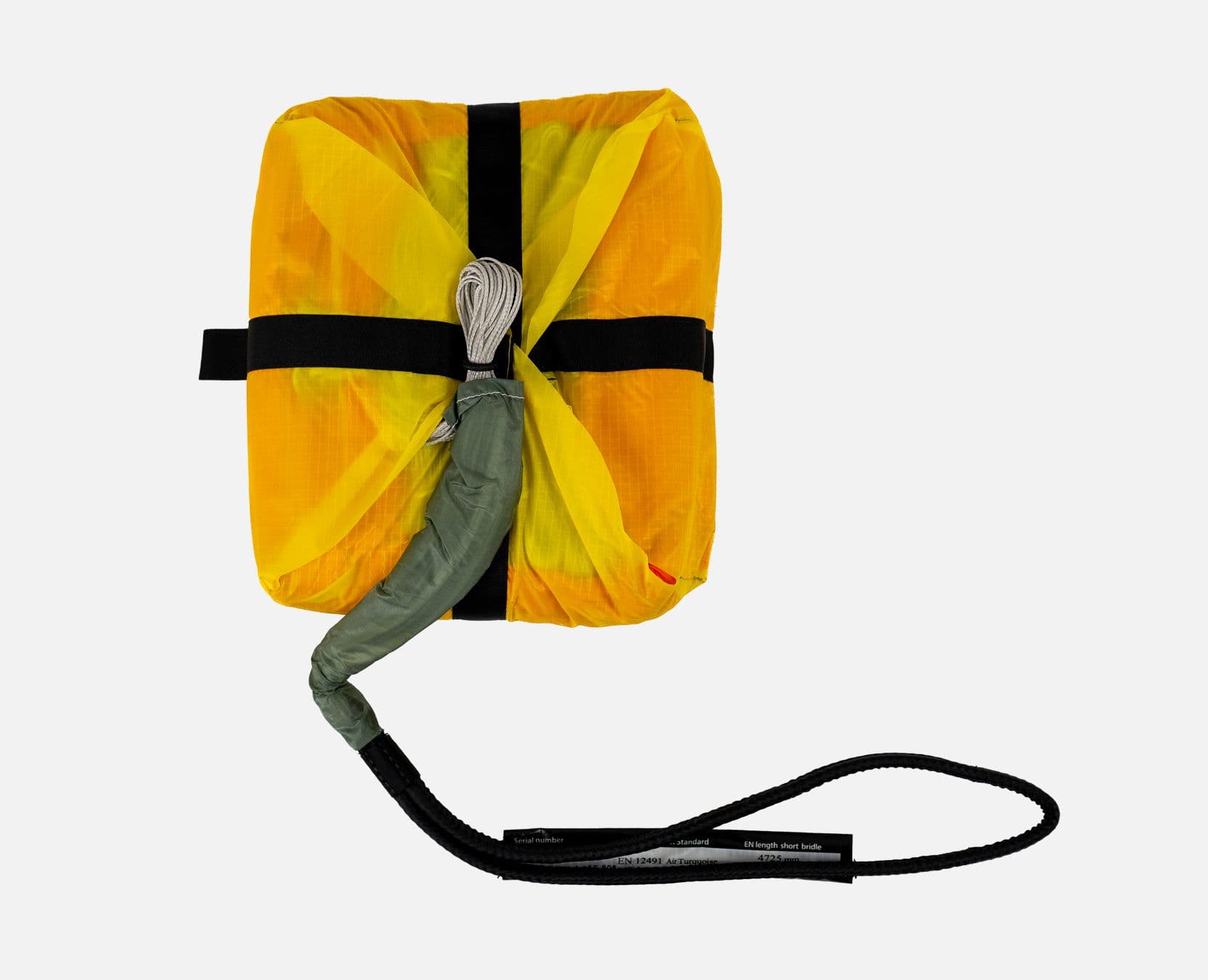

In Flight
Modern square rescue parachute designs have proven time and again to offer significantly better pendulum stability and sink rate performance than traditional round parachutes, whilst retaining the fast opening times that are critical for our safety. The Angel SQ PRO has a relatively large surface area, yet is very light in weight, giving exceptional sink rate.
Designer Notes by
Luc Armant
The Angel SQ Pro is the same proven concept of the Angel SQ, made from even lighter materials. It was developed for hike and fly adventures like the Red Bull X-Alps, and for anyone looking to save wei...
Specifications
| Certification loading (kg) |
|---|
| Surface (m²) |
| Weight (kg)* |
| Sink rate at max load (m/s) |
| System Height (mm)** |
| Zulassung |
| 85 | 100 | 120 |
|---|---|---|
| 26.1 | 29.1 | 34.8 |
| 0.89 | 0.94 | 1.19 |
| 5.4 | 5.43 | 5.39 |
| 4535 | 4735 | 5635 |
| EN / LTF | EN / LTF | EN / LTF |
*Weights with deployment bag and short bridle add 20g for long bridle
**System Height: Apex line + upper apex line + bridle
Angel SQ / SQ PRO: Short 38,5cm / Long 155cm
Rescues available with short bridle or long bridle
Downloads
| TITLE | TYPE | OPTION |
|---|---|---|
| Manual - EN |  | |
| Manual - ES | | |
| Manual - FR | | |
| Manual - DE | |
