Product Info

The ultimate in ultralight flying is back... and it's lighter and higher performing than ever. The all new Ultralite 5 features an incredible 0.8 glide performance increase and 7 km/h speed increase while being 100 g lighter than its predecessor. With the addition of 2 new sizes, the range now spans from 13 m² to 25 m², covering every pilot and every mode of ascent & descent.

THE TECH

An all new Ultralite-specific SharkNose is the core of this next generation design. It has improved the inflation, performance, comfort, and ease of use. The "ground roll" of the Ultralite 5 is the shortest of any light wing we have flown -- you will be airborne in fewer steps than ever, an important factor for mountain take-offs.

A new arc has made the wing more compact, with more intuitive and direct handling. New panel shaping and an improved wing twist have reduced drag significantly, improving True Performance and efficiency with no cost to safety.

THE WEIGHT

At 1.76 kg in the 17 m² size, the Ultralite 5 is the lightest certified dual surface wing per m² of flat area. The 15 m² and 13 m² (load test only) weigh in at just 1.59 kg and 1.42 kg respectively.

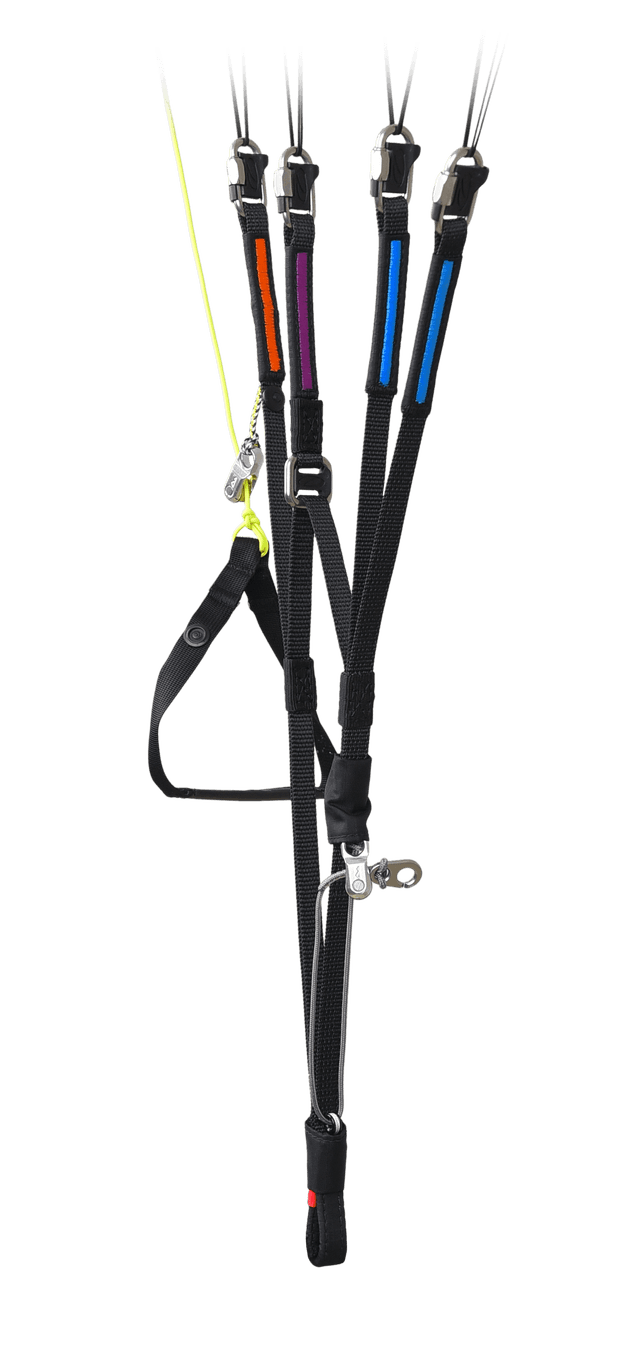

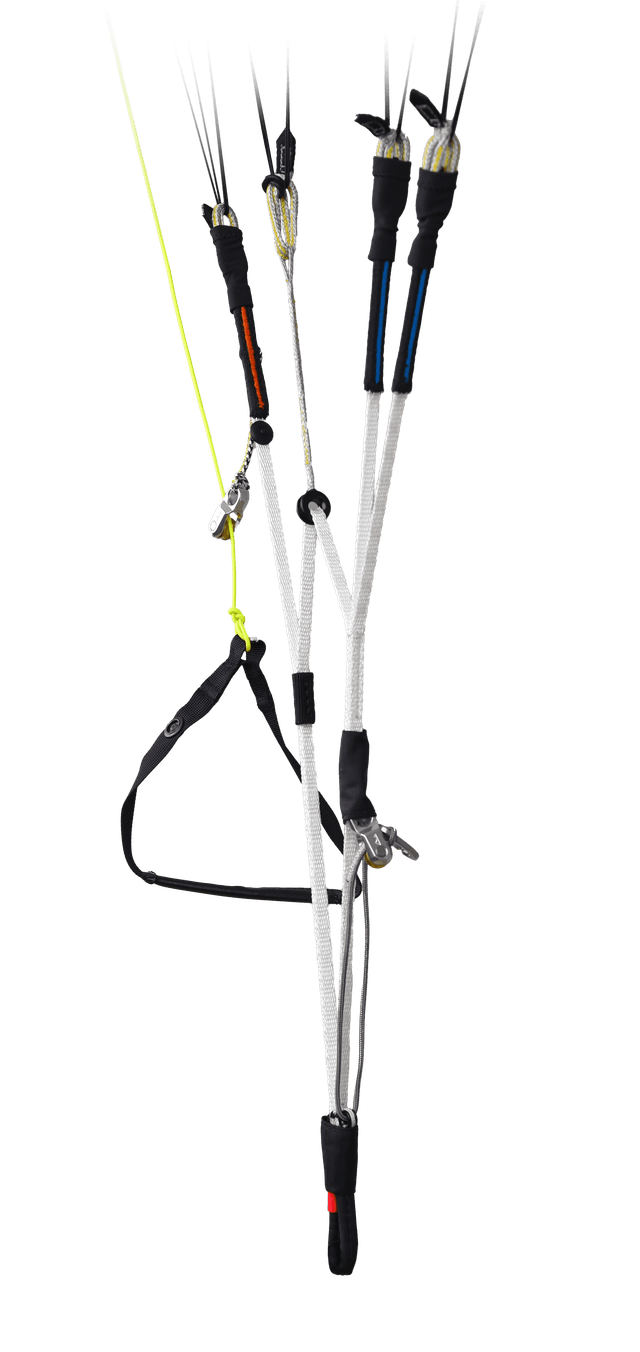

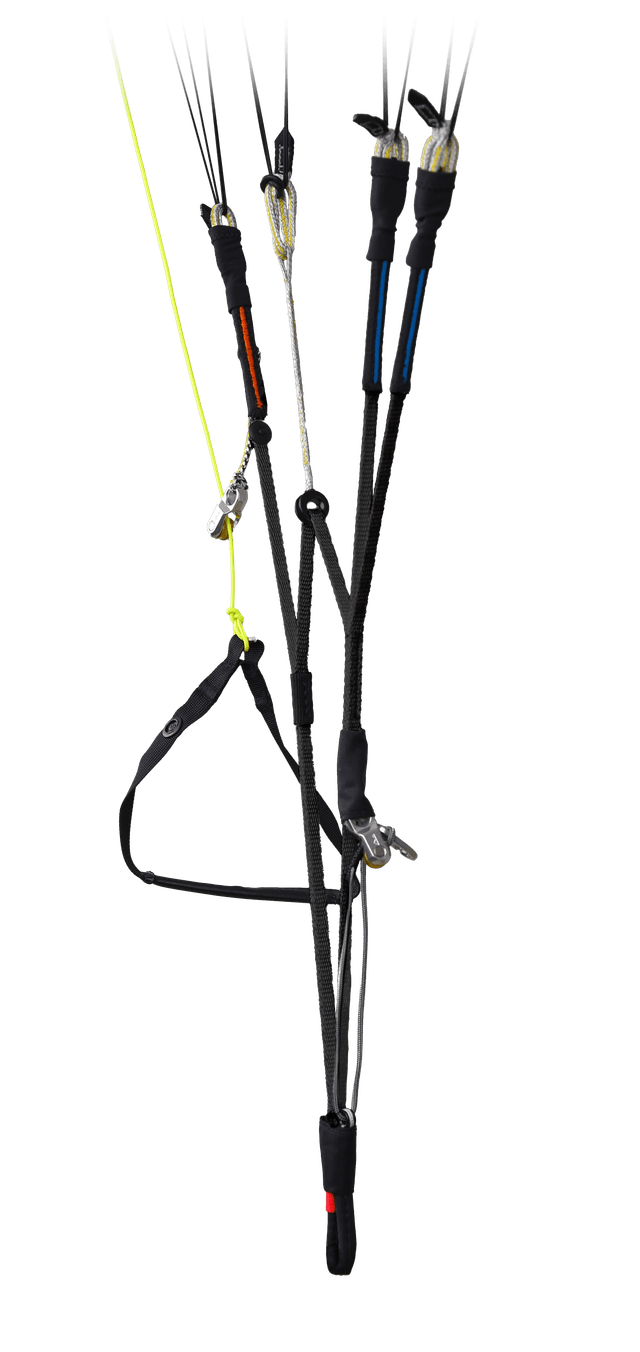

Pilots may choose between light and standard risers. Light risers are made with 7 mm Dyneema webbing and feature LinkLite soft connectors. Standard risers use 12 mm webbing and steel maillons, adding approximately 120 g in weight.

THE PILOT

Whether you are obsessed with ultra-light wings for run & fly, hike & fly, or mountaineering, or just looking for your first ultralight setup, the Ultralite 5 has what you need. Its balance of performance and lightness cannot be beat. This is the most accessible, fun, and reliable hike & fly / run & fly wing we have ever flown.

THE LITE LEGACY

Over the past 20 years of lightweight paraglider development here at OZONE, our light wings have launched from the summit of Everest, competed in every edition of the X-Alps, and broken vol-biv distance records around the world. The Ultralite 5 offers enough performance to thermal, ridge soar, or even go XC with security and comfort and this new version will greatly increase your range of action thanks to significant performance gains, with no compromise on safety.

Package Contents

Your OZONE wing is delivered standard with the following accessories:

Inner Bag, Compress Ultralite, glider strap, OZONE stickers, repair cloth and OZONE keyring.

You may choose to add something to your order, such as: Glider backpack, Concerto Ultralite, Easy Bag (quick stuff sack) or OZONE clothing and accessories.

Request

Request Flight Test

Photos

Specifications

Sizes	13	15	17	19	21	23	25
Number of Cells	34	34	34	34	34	34	34
Projected Area (m²)	11.4	13.1	14.7	16.5	18.1	19.9	21.9
Flat Area (m²)	12.9	14.9	16.9	18.9	20.8	22.8	25.1
Projected Span (m)	6.3	6.7	7.1	7.5	7.9	8.3	8.7
Flat Span (m)	7.7	8.2	8.8	9.3	9.7	10.2	10.7
Projected Aspect Ratio	3.4	3.4	3.4	3.4	3.4	3.4	3.4
Flat Aspect Ratio	4.56	4.56	4.56	4.56	4.56	4.56	4.56
Root Chord (m)	2.1	2.25	2.4	2.54	2.66	2.79	2.92
Glider Weight (kg)*	1.44	1.59	1.76	1.93	2.07	2.23	2.41
In-flight Weight Range (kg)	55-90	55-90	55-90	55-95	55-100	65-110	75-120
Certification	-	-	C	B	A	A	A

Sizes
Number of Cells
Projected Area (m²)
Flat Area (m²)
Projected Span (m)
Flat Span (m)
Projected Aspect Ratio
Flat Aspect Ratio
Root Chord (m)
Glider Weight (kg)*
In-flight Weight Range (kg)
Certification

13	15	17	19	21	23	25
34	34	34	34	34	34	34
11.4	13.1	14.7	16.5	18.1	19.9	21.9
12.9	14.9	16.9	18.9	20.8	22.8	25.1
6.3	6.7	7.1	7.5	7.9	8.3	8.7
7.7	8.2	8.8	9.3	9.7	10.2	10.7
3.4	3.4	3.4	3.4	3.4	3.4	3.4
4.56	4.56	4.56	4.56	4.56	4.56	4.56
2.1	2.25	2.4	2.54	2.66	2.79	2.92
1.44	1.59	1.76	1.93	2.07	2.23	2.41
55-90	55-90	55-90	55-95	55-100	65-110	75-120
-	-	C	B	A	A	A

* Weights may vary up to 50g per size due to slight variations in the manufacturing of the fabric used.

For the Standard Riser option, add 120g per size. PLEASE SPECIFY YOUR RISER CHOICE TO YOUR DEALER.

Materials

Risers
