- Speed and efficiency of the Viper
- Fun and agility of the Slalom
- Incredible stability in all modes of flight
- Ozone Shark Nose
- Features Ozone PK riser system
- Slalom Steering System
- Speed and efficiency of the Viper
- Fun and agility of the Slalom
- Incredible stability in all modes of flight
- Ozone Shark Nose
- Features Ozone PK riser system
- Slalom Steering System
Colour Options
Ordering Information
Package Contents
Your OZONE wing is delivered standard with the following accessories:
Inner Bag, Glider Strap, Riser bag, Speed Bar, OZONE Stickers, Repair Cloth, OZONE Keyring.
You may choose to add something to your order, such as: Easy Bag (stuff bag), Light Easy bag (video), Saucisse Bag (video) (concertina packing bag), Glider Backpack, or OZONE Clothing and Accessories.
Request

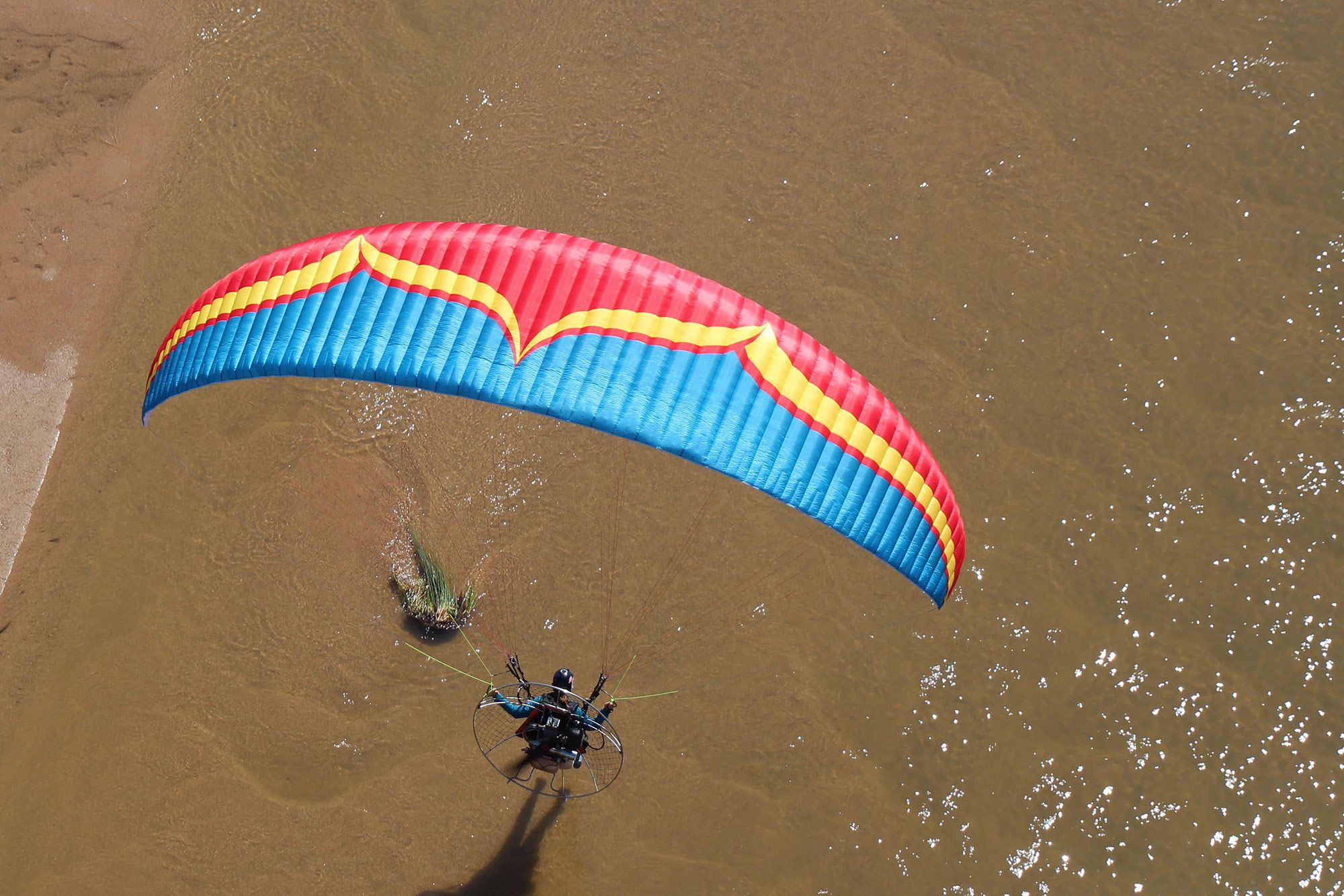

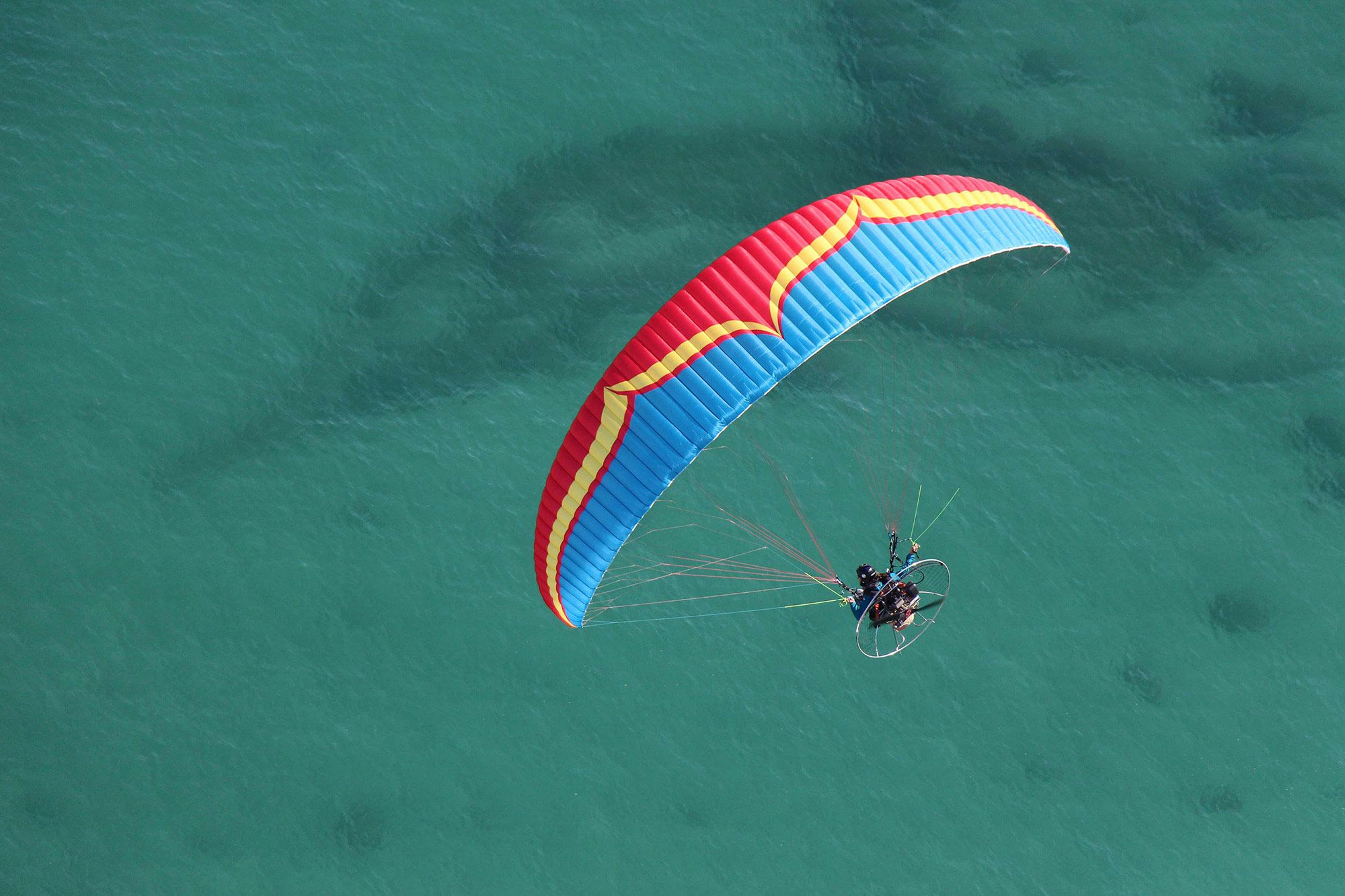

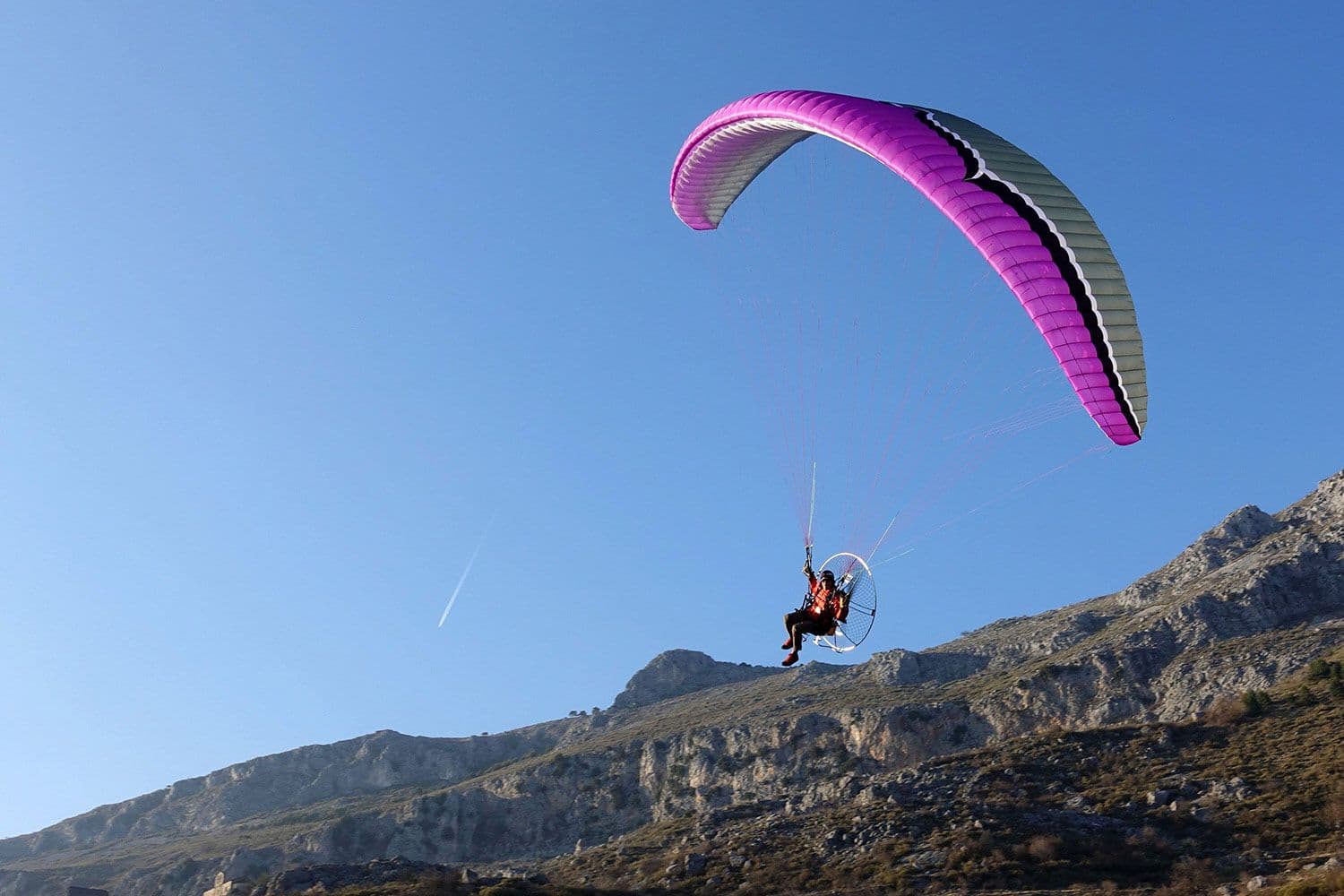

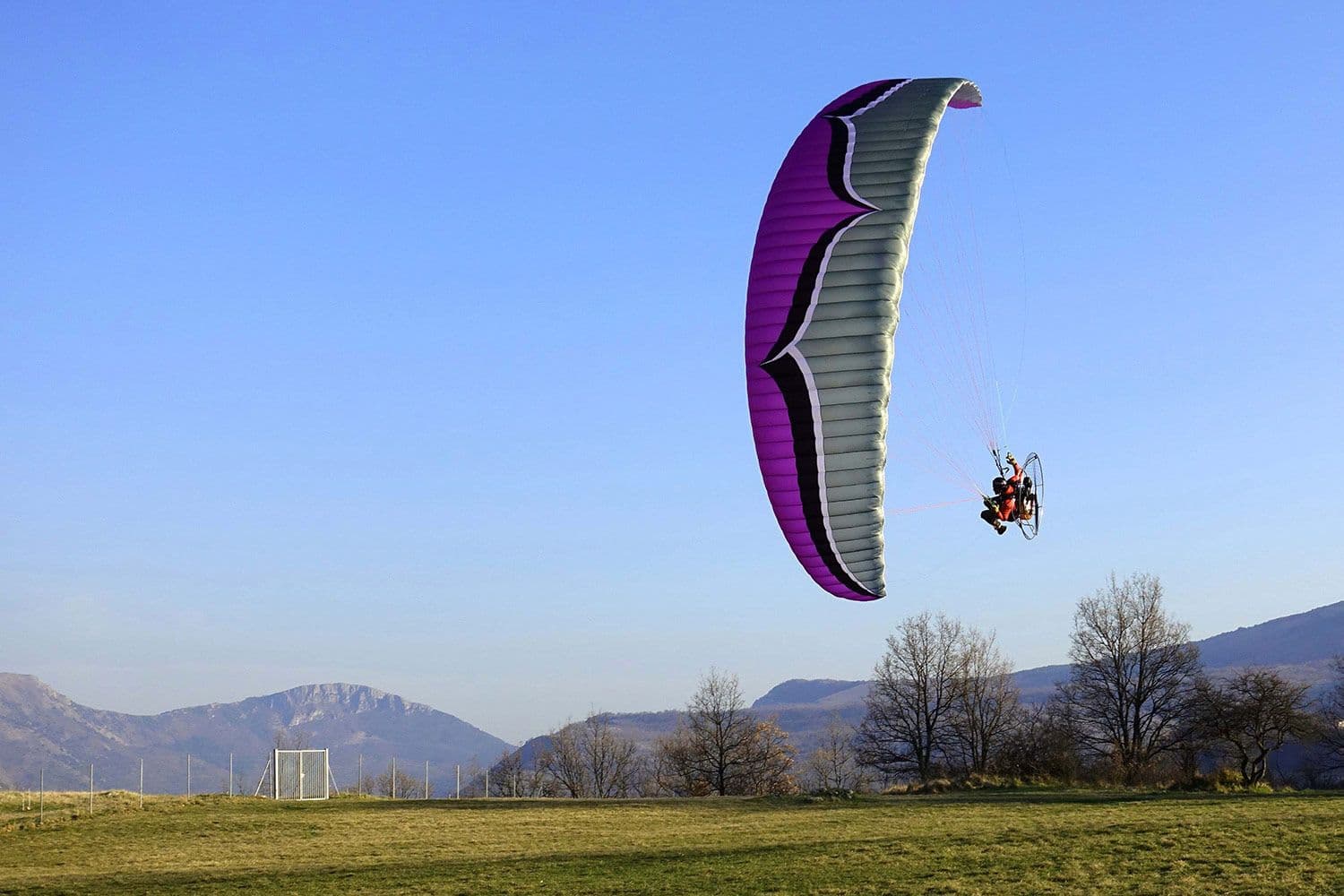

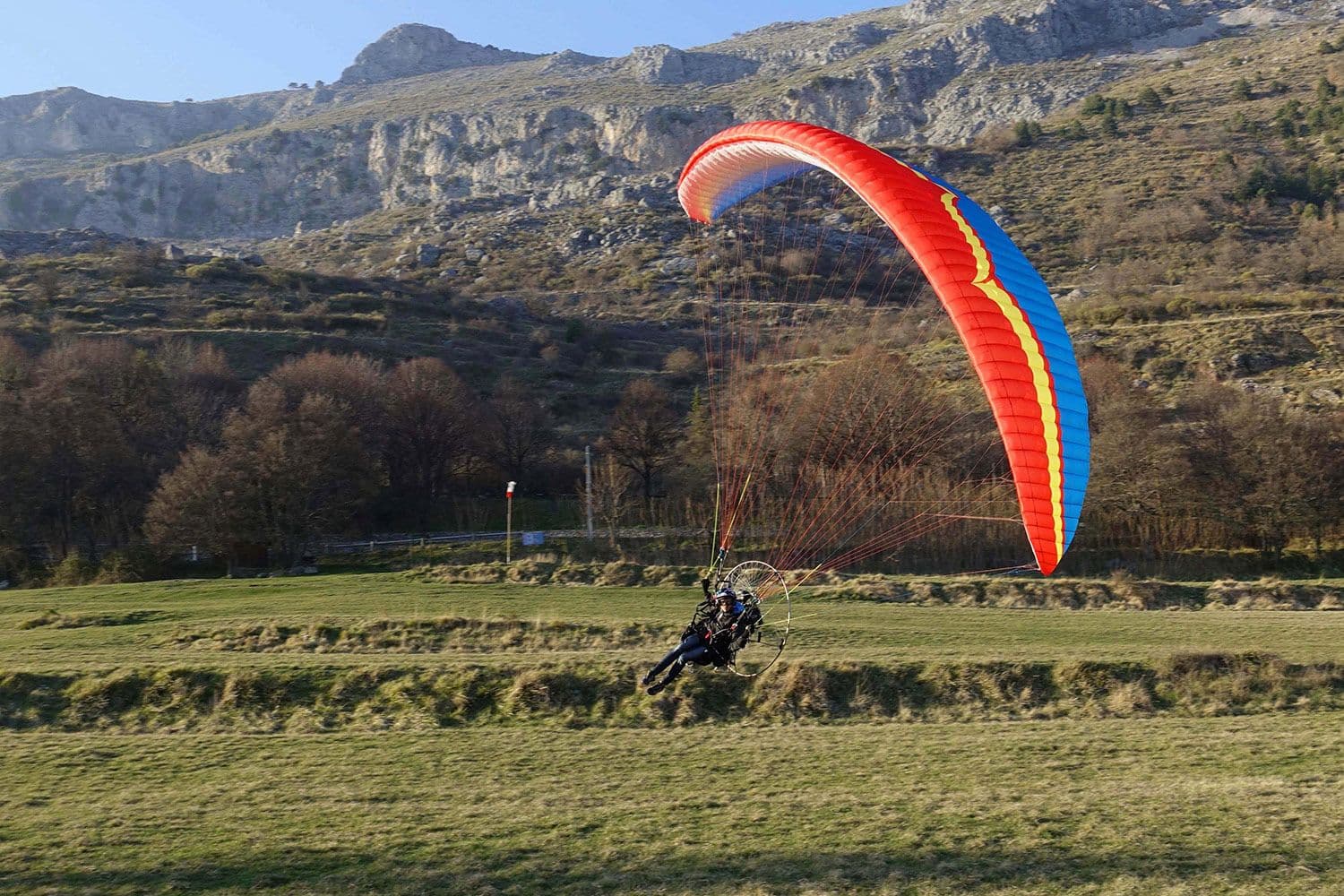

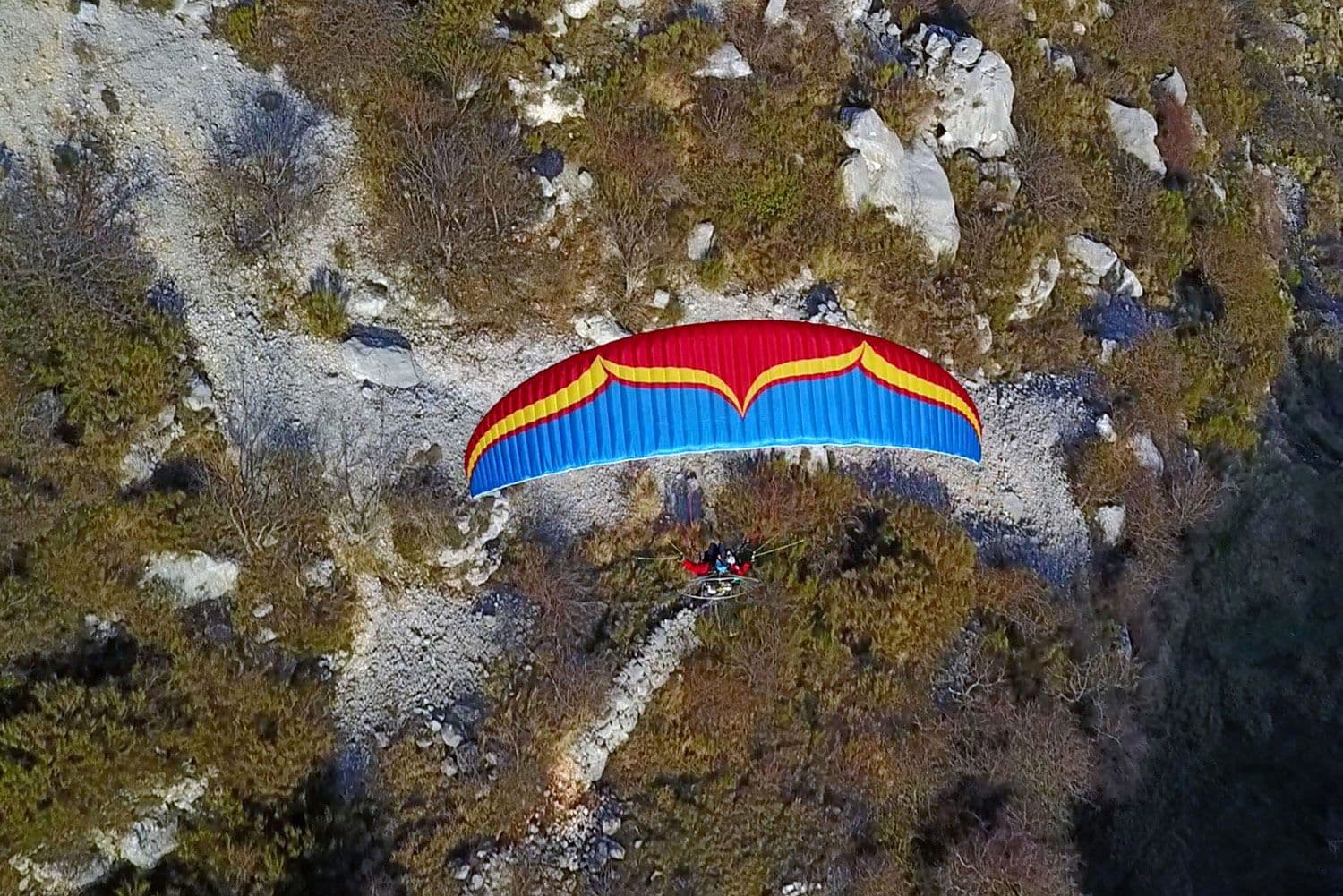

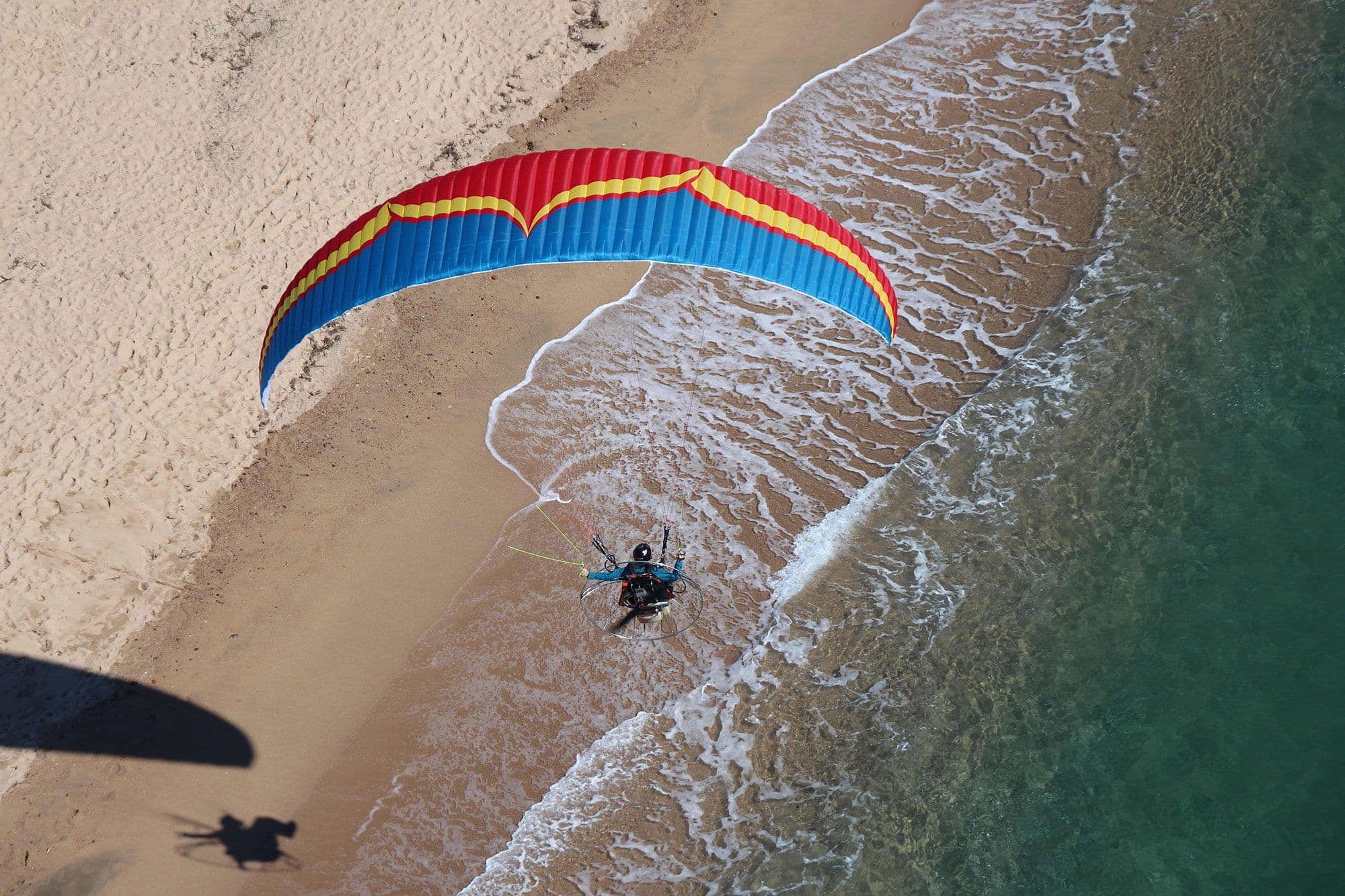

Photos
Specifications
| Sizes | 14 | 15 | 16 | 17 | 19 | 21 | 23 |
|---|---|---|---|---|---|---|---|
| Number of cells | 56 | 56 | 56 | 56 | 56 | 56 | 56 |
| Projected area (m2) | 11.97 | 12.8 | 13.7 | 14.5 | 16.2 | 17.9 | 19.7 |
| Flat Area (m^2) | 14 | 15 | 16 | 17 | 19 | 21 | 23 |
| Projected Span (m) | 7.01 | 7.33 | 7.57 | 7.81 | 8.25 | 8.68 | 9.08 |
| Flat Span (m) | 8.89 | 9.21 | 9.51 | 9.8 | 10.36 | 10.89 | 11.4 |
| Projected Aspect Ratio | 4.19 | 4.19 | 4.19 | 4.19 | 4.19 | 4.19 | 4.19 |
| Flat Aspect Ratio | 5.65 | 5.65 | 5.65 | 5.65 | 5.65 | 5.65 | 5.65 |
| Root Chord (m) | 1.99 | 2.06 | 2.12 | 2.19 | 2.31 | 2.43 | 2.55 |
| Glider Weight (kg) | 3.69 | 3.85 | 3.98 | 4.17 | 4.47 | 4.78 | 5.1 |
| In-flight Weight Range PG (kg) | 55-90 | 55-90 | 55-90 | 65-95 | 75-105 | 85-115 | 95-125 |
| In-flight Weight Range PPG (kg) | 55-105 | 55-120 | 55-130 | 65-140 | 75-150 | 85-160 | 95-170 |
| DGAC | DGAC | DGAC | DGAC | DGAC | DGAC | DGAC | DGAC |
* Weights may vary up to 50gm per size due to slight variations in the manufacturing of the fabric used.
Materials
- Top Surface Cloth: Dominico 30D MF
- Bottom Surface Cloth: Dominico N20D
- Rib cloth: Dominico 30D FM
- Upper lines: Edelrid 8000U series
- Mid lines: Edelrid 8000U series
- Lower Lines: Edelrid 6843 series
Custom Colours
OZONE COLOUR REFERENCE ()
